SPC type 8 grooves heave duty v belt wheel pully

FOB Reference Price:Get Latest Price
US $3-1,967.7 / Pieces | 1 Piece/Pieces SPC type 8 grooves heave duty v belt wheel pully (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
V-Belt
Material:
Cast Iron GG20
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
CPT
Model Number:
SPC-08
Product name:
SPC type 8 grooves heave duty v belt wheel pully
Groove No.:
8 grooves
Pitch diameter:
200 ~ 1600 mm
Outside diameter:
209.6 ~ 1609.6 mm
Bore Type:
taper bushed bore
Fit bushing:
3535, 4040, 4545, 5050, 6050
Fit Shaft Dia. (mm/in):
24mm ~ 150mm / 1" ~ 6"
Surface treatment:
Black electrophoresis
Balance:
static balance
Certification:
ISO9001:2008
SupplyAbility
SupplyAbility:
730000 Piece/Pieces per Month SPC type 8 grooves heave duty v belt wheel pully
Packaging & Delivery
Packaging Details
1. Individual package -- each pulley is protected
2. Standard size carton
3. Customized wooden case -- save space
4. Wrapping film -- water proof
5. OEM/ODM available
Port
Shanghai
Lead Time :
1 ~ 7 days

SPC type 8 grooves heave duty v belt wheel pully

Product Description

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle’s powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

Product Details

SPC type 8 grooves heave duty v belt wheel pully

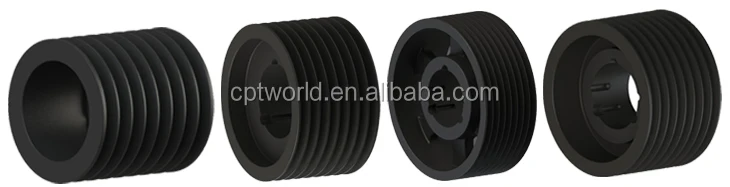

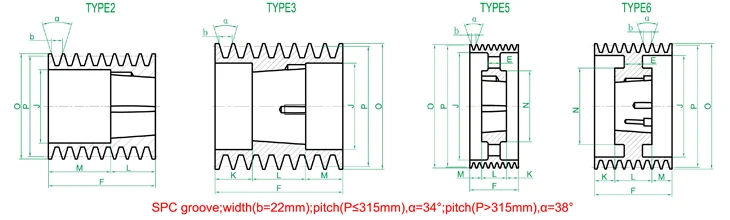

Product Structure type

SPC type 8 grooves heave duty v belt wheel pully

SPC type 8 grooves heave duty v belt wheel pully



SPC-08 vee pulley Specifications

Product Name:V Belt Pulley

Belt Section:SPC

Grooves:8

SPC type 8 grooves heave duty v belt wheel pully

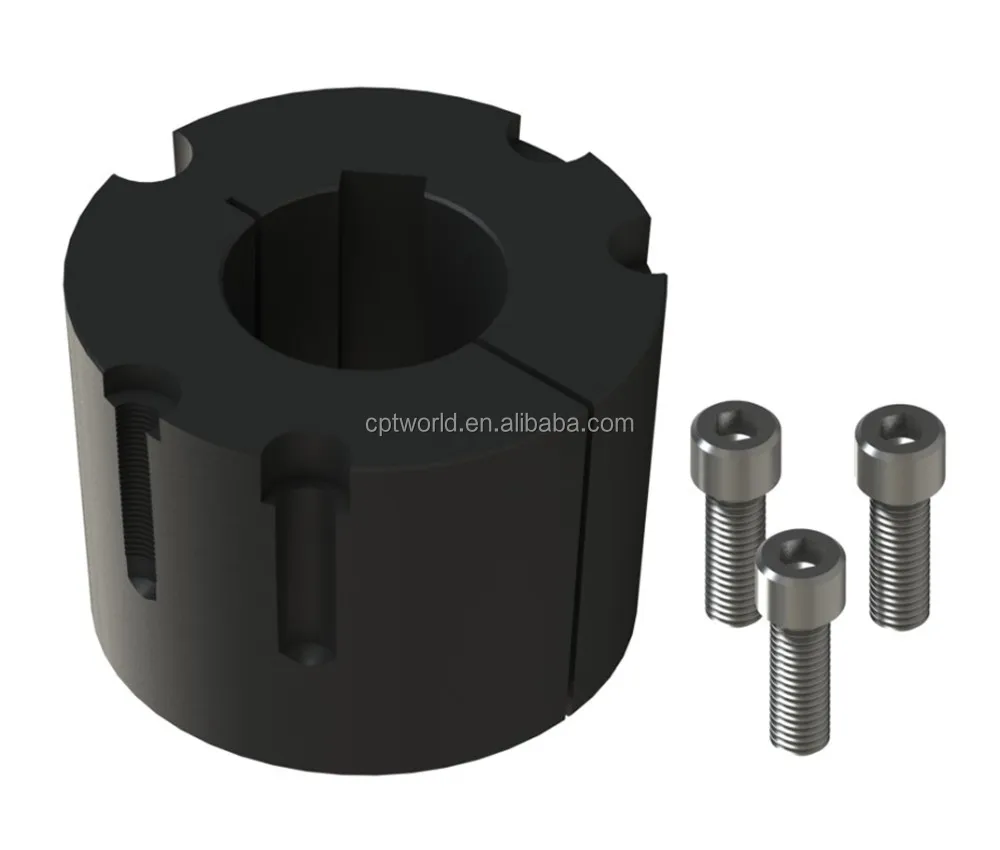

Equipped with Bush:



                                                                                                      European standard bush





Bush                          Bore   Range (mm)
353535,38,40,42,45,48,50,55,60,65,70,75,80,85,90
404040,42,45,50,60,65,70,75,80,90,95,100
454555,60,65,70,75,80,85,90,95,100,105,110
505060,65,70,75,80,85,90,95,100,105,110,115,120,125
6050100,125,140,137.5,145,150



Pulley & Belt Select

Which Pulley should I buy?

SPC type 8 grooves heave duty v belt wheel pully

Other Products

SPC type 8 grooves heave duty v belt wheel pully

Please contact us or go to homepage for more product information.

Packaging & Shipping

 SPC type 8 grooves heave duty v belt wheel pully

Company Information

SPC type 8 grooves heave duty v belt wheel pully

Sichuan Dawn Precision Technology Co. Ltd was founded in April 1995. Now we are the professional manufacturer of pulley, bushing , and other mechanical transmission parts. Now we own 45 product patents and 3 technological achievements , management system has integrated ISO9001,TS16949,ISO14001,OHSAS18001.

SPC type 8 grooves heave duty v belt wheel pully

Heat treatment & surface treatment equipment mainly contains Multi-purpose furnace heat treatment line, pit and box-type furnace , black oxide  surface treatment line , black phosphate surface treatment line, pre-treatment processing line, E-coating production line, plating production line,powder coating production line, sewage treatment station and so on.

SPC type 8 grooves heave duty v belt wheel pully



OEM service

Strong OEM ability will meet all your special needs!



SPC type 8 grooves heave duty v belt wheel pully

Our customers

Our main customers are all world famous brands, like: ABB, SKF, Sati and Atlas Copco, etc.

SPC type 8 grooves heave duty v belt wheel pully

Contact us

Lisa Young   -  24 hour Service

yangyang at cpt-world.com

skype: lisayoung765
whatsapp: +86 13281268355
Your satisfaction is our foremost concern and any inquiry is warmly welcomed.







SPC type 8 grooves heave duty v belt wheel pully
