ISO9001 Certified High quality 1310 taper bushes

FOB Reference Price:Get Latest Price
US $2-2.5 / Pieces | 1 Piece/Pieces ISO9001 Certified High quality 1310 taper bushes (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
CPT
Model Number:
1310
Product Name:
ISO9001 Certified High quality 1310 taper bushes
Screws Specification:
3/8-16BSW*5/8
Screws Quantity:
2
Tools for tighten:
Allen wrench 3/16"
Bore diameter (mm):
12 ~ 35 mm
Bore diameter (in):
7/8", 1", 1-1/4", 1-3/8"
Material:
Cast Iron GG20
Transmissible Torque:
435 Nm
Surface treatment:
Phosphated
Keyway:
4 ~ 10 mm
Supply Ability
Supply Ability:
730000 Piece/Pieces per Day ISO9001 Certified High quality 1310 taper bushes
Packaging & Delivery
Packaging Details
1. Individual package -- each taper lock bush is protected
2. Standard size carton
3. Customized wooden case -- save space
4. OEM/ODM available
Port
shanghai
Lead Time :
1-20 days

ISO9001 Certified High quality 1310 taper bushes

Product Description
Usage
Taper lock bushings are used to match with belt pulleys to transmite torque.
CPT taper lock bushings includes series 1008, 1108, 1210, 1215, 1310, 1610, 1615, 2012, 2017, 2517, 2525, 3020, 3030, 3525, 3535, 4030, 4040, 4535, 4545, 5040, 5050, 6050, 7060, 8065

Product Structure type



Specifications

Product Name:Taper Bushes 1310



Bore Diameter (Metric system)
Product   CodeProduct ModelD1D2SD (G7)bJs9tWeight
(Kg)
CP0789411310-12MM50.847.6325.4124±0.015D+1.80.31
CP0789421310-14MM145D+2.30.3
CP0789431310-16MM16D+2.30.29
CP0789441310-18MM186D+2.80.28
CP0789451310-19MM19D+2.80.23
CP0789461310-20MM20D+2.80.28
CP0789471310-22MM22D+2.80.25
CP0789501310-24MM248±0.018D+3.30.24
CP0789511310-25MM25D+3.30.23
CP0027381310-28MM28D+3.30.22
CP0027441310-30MM30D+3.30.19
CP0027481310-32MM3210D+3.30.18
CP0027521310-35MM35D+3.30.14
Bore Diameter (Imperial system)
Product   CodeProduct ModelD1D2SD (G7)btWeight
(Kg)
CP0789491310-7/82"1.875"1"7/8"1/4"D+1/8"0.25
CP0789481310-11"D+1/8"0.23
CP0756021310-1-1/41-1/4"5/16"D+1/8"0.2
CP0026911310-1-3/81-3/8"3/8"D+1/8"0.2





Certifications



Package&Shipping



Our Company

Sichuan Dawn Precision Technology Co. Ltd was founded in April 1995. Now we are the professional manufacturer of pulley, bushing, and other mechanical transmission parts.



Casting equipment mainly consists of ZZ416 vertical molding casting line, ZZ418 vertical molding casting line, resin-bonded casting line, Z124 molding casting line, Z146 molding casting line, Z148 molding casting line, vacuum casting line, lost foam casting line, casting model production workshop, car-type heat treating furnace, medium frequency smelting furnace , etc.

Heat treatment & surface treatment equipment mainly contains Multi-purpose furnace heat treatment line, pit and box-type furnace, black oxide surface treatment line, black phosphate surface treatment line, pre-treatment processing line, E-coating production line, plating production line, powder coating production line, sewage treatment station and so on.
Casting and forging test equipment includes Germany DBLF direct-reading spectrometer, Heraeus furnace analysis detector, Heraeus thermoprobe, Video metallographic microscope, tensile strength tester, foundry Sand test equipment, SI/MN/P Analysis meter, CS analysis meter, ultrasonic fault detector, etc.


Machining inspection equipment includes CMM, roughness tester, projector, gear testing center, torque testing machine,durability testing machine, loading test bed, Tensile strength tester, noise tester and so on.


Heat treatment testing equipment includes precision metallographic microscope, Vickers hardness tester, Brine-ll hardness tester, Rockwell hardness tester, portable hardness tester, electron potentiometer, salt spray tester, Magnetic particle flaw detector, thickness tester, etc.

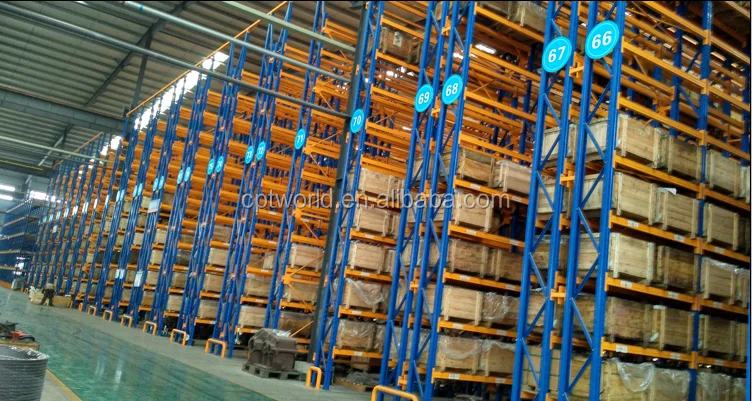

Huge Stock Corner



Our Factory



CPT has four factories which includes casting line, machining line, surface treatment line and packing line.

We can finish casting, machining, heat treatment,surface finishing and assembling etc. all process in our factory.

We can provide Salt Spray Test, Mechanics Performance Testing, hardness testing etc. in our factory.

OEM service

Strong OEM ability will meet all your special needs!



23 years experience for belt pulley and other parts!





Our customers

Our main customers are all world famous brands, like: ABB, SKF, Sati and Atlas Copco, etc.
