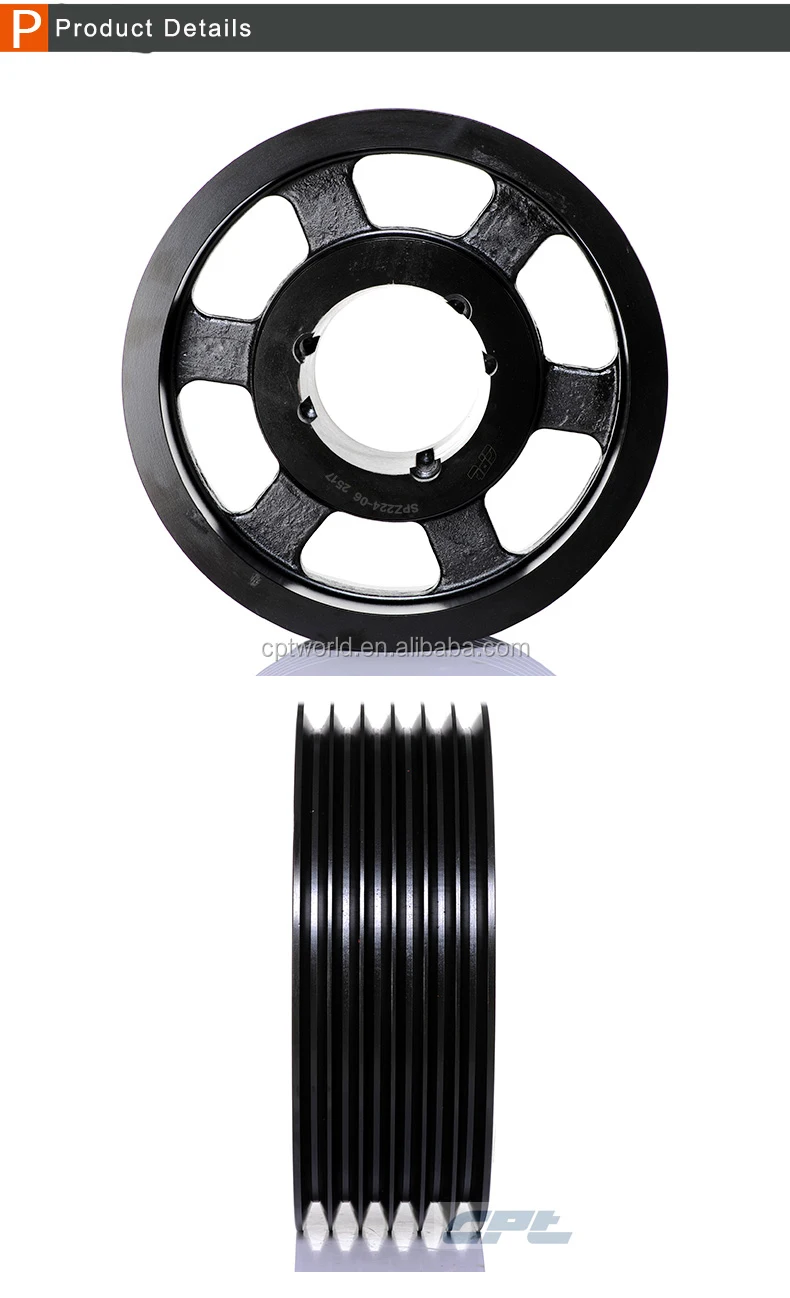

SPZ 6 grooves stock pulley for air compressor

FOB Reference Price:Get Latest Price
US $12-132 / Piece | 1 Piece/Pieces SPZ 6 grooves stock pulley for air compressor (Min. Order)
Supply Ability:
730000 Piece/Pieces per Month SPZ 6 grooves stock pulley for air compressor
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Type:
V-Belt
Material:
Cast Iron GG20
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
CPT
Model Number:
SPZ-06
Product name:
SPZ 6 grooves stock pulley for air compressor
Surface treatment:
Black electrophoresis
Pitch diameter(mm):
90mm-800mm
Outside diameter(mm):
94mm-804mm
Bush No.:
1610, 2012, 2517, 3030, 3535
Groove No.:
6 grooves
Balance:
Static balance
Bore Type:
Taper bore
Max Shaft Dia.:
90mm
Certification:
ISO9001:2008
Packaging & Delivery
Packaging Details
Plastic individual package
Carton
Wooden case
Pallet
Custom package
Delivery Time
1 ~ 15 days

SPZ 6 grooves stock pulley for air compressor

Product Description

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle’s powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.



Product Features
Easy Mount and Rmoval Taper Bush Pulley
High Grade cast iron material
Statically balanced
Anti-rust surface



Our Advantages
22 years Pulley manufacturer with rich exporting experience
Factory direct sale
ISO 9001 certified Top Quality
Effecient & Responsible Resolution Service



V belt pulley Drawing



SPZ-06 belt pulley wheels Dimensions

Product Name:V Belt Pulley

Belt Section: SPZ

Grooves: 6 grooves



Product CodeProduct
Model
Grooves    POTYPEBUSHMAX BoreEFJKLMNWeight
(Kg)
CP041854SPZ90-06690948161042766151251.5
CP041890SPZ95-06695998161042766651251.68
CP041150SPZ100-0661001048201250767144321.65
CP041168SPZ106-0661061108201250767644321.95
CP041201SPZ112-0661121168201250768344322.25
CP049836SPZ118-0661181228251760769031452.14
CP041246SPZ125-0661251298251760769631452.6
CP041267SPZ132-06613213682517607610331453.15
CP041291SPZ140-06614014422517607611145313.7
CP041310SPZ150-06615015422517607612145314.47
CP041329SPZ160-06616016422517607613145314.9
CP041346SPZ170-06617017422517607614145316.2
CP041365SPZ180-066180184325176076151164515.57.12
CP041385SPZ190-066190194325176076161164515.58.13
CP041414SPZ200-066200204325176076171164515.59.28
CP041433SPZ212-06621221662517601576183164515.51247.48
CP049873SPZ224-066224228525176076195164515.51247.42
CP041493SPZ236-066236240525176076207164515.51248.72
CP041515SPZ250-066250254525176076221164515.51249.43
CP041559SPZ280-066280284525176076251164515.51249.8
CP041589SPZ315-066315319525176076286164515.512411
CP041613SPZ355-066355359525176076326164515.512412.93
CP041627SPZ400-0664004045303075763717614617.4
CP041641SPZ450-0664504545303075764217614619.96
CP041662SPZ500-0665005045303075764717614622.5
CP041703SPZ630-0666306344353590766016.5896.517532
CP041784SPZ800-0668008044353590767716.5896.517860.2





Equipped with Taper Bush:



                 European standard bush
TypeBore Range
100810,11,12,14,15,16,18,19,20,22,24,25
251720,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60
302025,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
303025,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
303535,38,40,42,45,48,50,55,60,65,70,75,80,85,90
